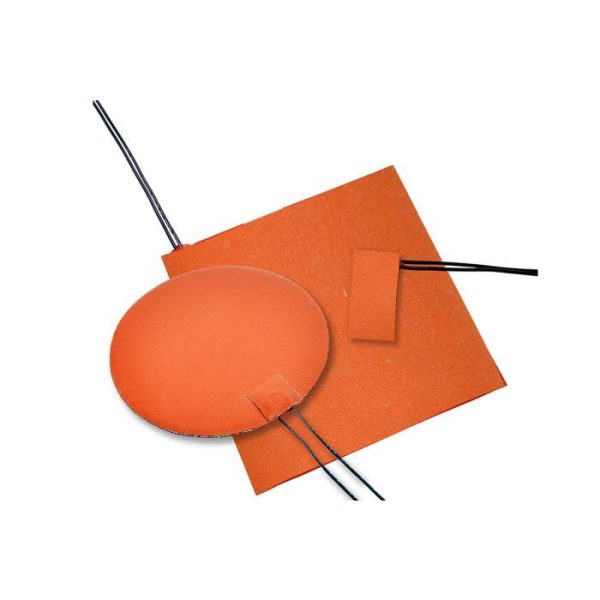

SRW Economy-Series Silicone Rubber Heating Blankets

Specifications

Power Density: 5 W/in2 (0.78 w/cm2)
Voltage: 120 or 240 VAC
Wattage: +5%/-10%
Exposure Temperature: -60°F to 450°F (-51°C to 232°C)
Nominal Thickness: 0.06 in (1.5 mm)
Minimum Bend Radius: 3.5 in (89 mm)
Power Leads: 10 in (25 cm) PFA extruded 22 AWG leads with bare wire (no plug); Other lengths offered.
Built-in Preset: (on/off) Thermostat Options:*:

• 28°F/55°F (-2°C/13°C)
• 82°F/109°F (28°C/43°C)
• 147°F/174°F (64°C/79°C)
• 172°F/194°F (78°C/90°C)
• 275°F/302°F (135°C/150°C)

Built-in Adjustable Thermostat Options*: Adjustable from 25°F to 330°F (-4°C to 166°C)

Custom Options:

Power Density: 0.5 W/in2 to 25 W/in2 (0.08 W/cm2 to 3.9 W/cm2)
Voltage: 120 or 240 VAC (12 VDC to 480 custom)
Lead Terminations: Insulated terminals, standard plugs, mini connectors, twist lock plugs, bare wire
Lead Protection: Heat shrink, silicone sleeve, SS braid, SS conduit
Mounting: Easy to apply industrial strength pressure sensitive adhesive backing, boot hooks and lace, D-rings, springs and grommets, snap fasterners, high-temp rubber rings, hook adn loop (Velcro)
Insulation: closed cell silicone rubber sponge bonded to the heater for added efficiency: 1/16, 1/8, 1/4, or 1/2 in (1.6, 3.2, 6.4, 9.5, 12.7 mm) Rated to 450°F (232°C)

*SRW blankets with thermostats or ground mesh are not UL recognized
