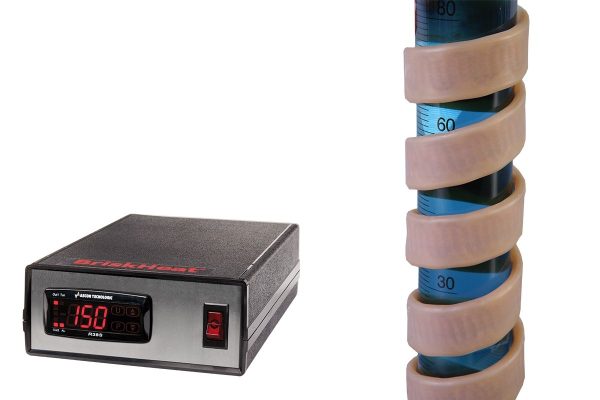

SDXRA Digital PID Temperature Controller with Silicone Rubber Heating Tape (BS0) (Special Bundle Price); 5 ft PT100-RTD Sensor; 1.0 in x 20.0 ft (25 mm x 6.1 m); 1075 Watts; 120V (see product sheet for approvals)
Menu
Menu
DON'T SEE YOUR SIZE OR OPTION?
HAVE A QUESTION ABOUT WHICH BRISKHEAT PRODUCT IS RIGHT FOR YOU?
NEED PURCHASING ASSISTANCE?
CONTACT US.
WE ARE HERE TO HELP!
Monday - Friday
0900AM - 0500PM
Email Us
online_enquiry@kromax.com
Specifications
Silicone Rubber Heating Tapes (BS0)
- Maximum exposure temperature: 450°F (232°C)
- Construction:
- Fiberglass knit and braided heating element
- Silicone rubber extruded outer sheath
- Power density:
- Standard:4.3 W/in2 (0.007 W/mm2 )
- 24″ (610mm) power leads with:
- 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
- 240VAC: Bare wire connection
-
- Ingress Protection Rating: IP66
SDX Digital Benchtop Temperature Controller
- Voltage: 100 – 240 VAC
- Max. Amp Load: 15 Amp North America; 10 Amp Europe
- Temperature Control Range: 0°F to 999°F and 0°C to 999°C
- Temperature Display Units: °F and °C
- Sensor, 5 ft (1.5 m) included: Type-J or Type-K Thermocouple, or PT100-RTD
- Accuracy: +/-0.5% span +/- 1 digit at 77°F (25°C)
- Alarms: Audible; Programmable for high or low absolute, or deviation
- Input Power Cord/Connections: 79 in (2 m) long with input power plug based on model
- Output Power Cord/Connection: C13 receptacle with mating C14 plug
- Special Features: Digital PID with Autotuning
- Environmental Exposures:
- Operating range: 32°F to 111°F (0°C to 44°C)
- Storage range: -4°F to 158°F (-20°C to 70°C)
- Relative humidity: < 95% non-condensing temperatures
- Enclosure Dimensions:
- 6.4 in x 2.6 in x 9.5 in
- (162 mm x 66 mm x 241 mm)
- Enclosure Rating/Classification Designation:
NEMA1; IP30
Ordering Information
| PART NUMBER | VOLTAGE | WIDTH | LENGTH | WATTAGE | POWER PLUG TYPE | SENSOR TYPE |
|---|---|---|---|---|---|---|
| SDXJA-BS0101020L | 120 | 1.00 in (25 mm) | 2 ft (0.6 m) | 104 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101020L | 120 | 1.00 in (25 mm) | 2 ft (0.6 m) | 104 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101020L | 120 | 1.00 in (25 mm) | 2 ft (0.6 m) | 104 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0051080L | 120 | 0.50 in (13 mm) | 8 ft (2.4 m) | 209 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0051080L | 120 | 0.50 in (13 mm) | 8 ft (2.4 m) | 209 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0051080L | 120 | 0.50 in (13 mm) | 8 ft (2.4 m) | 209 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0051020L | 120 | 0.50 in (13 mm) | 2 ft (0.6 m) | 52 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0051020L | 120 | 0.50 in (13 mm) | 2 ft (0.6 m) | 52 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0051020L | 120 | 0.50 in (13 mm) | 2 ft (0.6 m) | 52 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0101160L | 120 | 1.00 in (25 mm) | 16 ft (4.9 m) | 836 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101160L | 120 | 1.00 in (25 mm) | 16 ft (4.9 m) | 836 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101160L | 120 | 1.00 in (25 mm) | 16 ft (4.9 m) | 836 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0101100L | 120 | 1.00 in (25 mm) | 10 ft (3.0 m) | 522 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101100L | 120 | 1.00 in (25 mm) | 10 ft (3.0 m) | 522 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101100L | 120 | 1.00 in (25 mm) | 10 ft (3.0 m) | 522 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0101040L | 120 | 1.00 in (25 mm) | 4 ft (1.2 m) | 209 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101040L | 120 | 1.00 in (25 mm) | 4 ft (1.2 m) | 209 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101040L | 120 | 1.00 in (25 mm) | 4 ft (1.2 m) | 209 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0051100L | 120 | 0.50 in (13 mm) | 10 ft (3.0 m) | 261 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0051100L | 120 | 0.50 in (13 mm) | 10 ft (3.0 m) | 261 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0051100L | 120 | 0.50 in (13 mm) | 10 ft (3.0 m) | 261 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0051040L | 120 | 0.50 in (13 mm) | 4 ft (1.2 m) | 104 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0051040L | 120 | 0.50 in (13 mm) | 4 ft (1.2 m) | 104 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0051040L | 120 | 0.50 in (13 mm) | 4 ft (1.2 m) | 104 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0101180L | 120 | 1.00 in (25 mm) | 18 ft (5.5 m) | 940 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101180L | 120 | 1.00 in (25 mm) | 18 ft (5.5 m) | 940 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101180L | 120 | 1.00 in (25 mm) | 18 ft (5.5 m) | 940 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0101120L | 120 | 1.00 in (25 mm) | 12 ft (3.7 m) | 627 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101120L | 120 | 1.00 in (25 mm) | 12 ft (3.7 m) | 627 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101120L | 120 | 1.00 in (25 mm) | 12 ft (3.7 m) | 627 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0101060L | 120 | 1.00 in (25 mm) | 6 ft (1.8 m) | 313 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101060L | 120 | 1.00 in (25 mm) | 6 ft (1.8 m) | 313 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101060L | 120 | 1.00 in (25 mm) | 6 ft (1.8 m) | 313 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0051120L | 120 | 0.50 in (13 mm) | 12 ft (3.7 m) | 313 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0051120L | 120 | 0.50 in (13 mm) | 12 ft (3.7 m) | 313 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0051120L | 120 | 0.50 in (13 mm) | 12 ft (3.7 m) | 313 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0051060L | 120 | 0.50 in (13 mm) | 6 ft (1.8 m) | 156 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0051060L | 120 | 0.50 in (13 mm) | 6 ft (1.8 m) | 156 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0051060L | 120 | 0.50 in (13 mm) | 6 ft (1.8 m) | 156 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0101200L | 120 | 1.00 in (25 mm) | 20 ft (6.1 m) | 1075 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101200L | 120 | 1.00 in (25 mm) | 20 ft (6.1 m) | 1075 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101200L | 120 | 1.00 in (25 mm) | 20 ft (6.1 m) | 1075 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0101140L | 120 | 1.00 in (25 mm) | 14 ft (4.3 m) | 731 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101140L | 120 | 1.00 in (25 mm) | 14 ft (4.3 m) | 731 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101140L | 120 | 1.00 in (25 mm) | 14 ft (4.3 m) | 731 | NEMA 5-15 | PT100/RTD |
| SDXJA-BS0101080L | 120 | 1.00 in (25 mm) | 8 ft (2.4 m) | 418 | NEMA 5-15 | J-Type Thermocouple |
| SDXKA-BS0101080L | 120 | 1.00 in (25 mm) | 8 ft (2.4 m) | 418 | NEMA 5-15 | K-Type Thermocouple |
| SDXRA-BS0101080L | 120 | 1.00 in (25 mm) | 8 ft (2.4 m) | 418 | NEMA 5-15 | PT100/RTD |
Resources
Design Checklists
Instruction Manuals
Approvals/Certificates
| Weight | N/A |
|---|---|
| Wattage | 52, 104, 156, 209, 261, 313, 522, 627, 731, 836, 940, 1075 |
| Width | 0.50in, 1.00in |
| Length | 2ft (0.6m), 4ft (1.2m), 6ft (1.8m), 8ft (2.4m), 10ft (3.0m), 12ft (3.6m), 14ft (4.3m), 16ft (4.9m), 18ft (5.5m), 20ft (6.1m) |
| Sensor Type | J-Type Thermocouple, K-Type Thermocouple, PT100/RTD |
