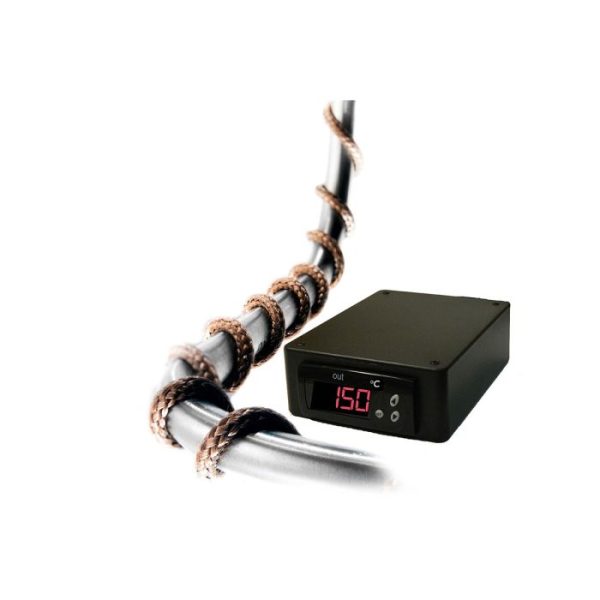

High Temperature Heating Cords (HWC) With SDC Temperature Controller Bundle

USD

$393.00$446.00

Clear

DON'T SEE YOUR SIZE OR OPTION?

HAVE A QUESTION ABOUT WHICH BRISKHEAT PRODUCT IS RIGHT FOR YOU?
NEED PURCHASING ASSISTANCE?  CONTACT US. WE ARE HERE TO HELP!

Monday - Friday
0900AM - 0500PM

Email Us
online_enquiry@kromax.com

Overview

Value-Priced Bundles: Save $10 by ordering these heaters and temperature controllers together
  • High-temperature heating cords designed for use on small tubes, vessels, or any application where space is limited and high temperatures are needed.
  • Maximum exposure temperature:
    • Removable & Reusable Use: Up to 572°F (300°C)
    • Single Install Use: Up to 932°F (500°C)
  • Extremely flexible heating cords can be wrapped around objects as small as 1/8″ (3mm) diameter.
  • Rapid thermal response provides accurate heat when you need it.
  • Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
  • Samox® outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
  • Available in a wide variety of length and width configurations.
  • Ideal for laboratory, R&D, gas tubing, production, maintenance, temporary heat, and more.
  • Safe for use with glass and electrically conductive metal surfaces.
  • Choice of power leads on same end or opposite ends to suit your electrical needs.
  • Includes 9″ (230mm) long high temperature tie downs for safe and easy installation.
  • Temperature controller is required for safe operation of this product.
  • Built-in split-plug design easily connects to your choice of temperature controlling device.

Specifications

  • Maximum exposure temperature:
    • Removable & Reusable Use: Up to 572°F (300°C)
    • Single Install Use: Up to 932°F (500°C)
  • Diameter: 3/16” (4.8mm)
  • Construction:
    • Samox® knit and braided heating element
    • Samox® knit and braided outer sheath
  • Power density:
    • Standard: 60 W/in(196 W/m)
  • 24″ (610mm) power leads with:
    • 120VAC: Separable 2-prong split-plug (NEMA 1-15)
    • 240VAC: Crimped ferrule wire connection

Ordering Information

PART NUMBER VOLTAGE LENGTH WATTAGE TEMPERATURE CONTROL RANGE SENSOR TYPE
SDCJCA-HWC1120 120 12 ft (3.7 m) 750 0°C to 600°C J-Type
SDCJFA-HWC1180 120 18 ft (5.5 m) 1000 32°F to 999°F J-Type
SDCJFA-HWC1040 120 4 ft (1.2 m) 266 32°F to 999°F J-Type
SDCKCA-HWC1060 120 6 ft (1.8 m) 350 0°C to 260°C K-Type
SDCKFA-HWC1120 120 12 ft (3.7 m) 750 32°F to 999°F K-Type
SDCJCA-HWC1180 120 18 ft (5.5 m) 1000 0°C to 600°C J-Type
SDCJCA-HWC1040 120 4 ft (1.2 m) 266 0°C to 600°C J-Type
SDCJFA-HWC1060 120 6 ft (1.8 m) 350 32°F to 999°F J-Type
SDCKCA-HWC1120 120 12 ft (3.7 m) 750 0°C to 600°C K-Type
SDCKFA-HWC1180 120 18 ft (5.5 m) 1000 32°F to 999°F K-Type
SDCKFA-HWC1040 120 4 ft (1.2 m) 266 32°F to 999°F K-Type
SDCJCA-HWC1060 120 6 ft (1.8 m) 350 0°C to 600°C J-Type
SDCJFA-HWC1120 120 12 ft (3.7 m) 750 32°F to 999°F J-Type
SDCKCA-HWC1180 120 18 ft (5.5 m) 1000 0°C to 600°C K-Type
SDCKCA-HWC1040 120 4 ft (1.2 m) 266 0°C to 600°C K-Type
SDCKFA-HWC1060 120 6 ft (1.8 m) 350 32°F to 999°F K-Type

Resources

Approvals/Certificates
Brochure & Line Cards
pdf
(Size: 725.3 KB)
Weight N/A
Wattage

266, 350, 750, 1000

Length

4ft (1.2m), 6ft (1.8m), 12ft (3.7m) 18ft (5.5m)

Temperature Control Range

0C to 600C, 0C to 260C, 32F to 999F

Sensor Type

J-Type, K-Type
