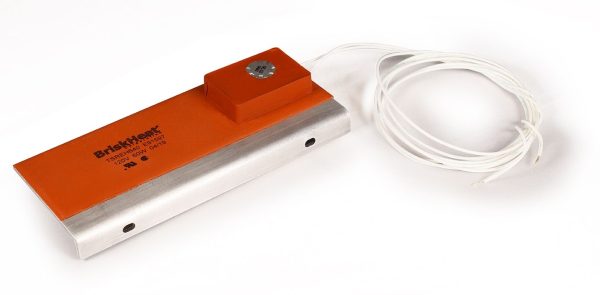

Enclosure Heaters - Silicone Rubber (TSREH)

USD

$67.25 – $108.00

Clear

DON'T SEE YOUR SIZE OR OPTION?

HAVE A QUESTION ABOUT WHICH BRISKHEAT PRODUCT IS RIGHT FOR YOU?
NEED PURCHASING ASSISTANCE?  CONTACT US. WE ARE HERE TO HELP!

Monday - Friday
0900AM - 0500PM

Email Us
online_enquiry@kromax.com

WhatsApp Chat

Specifications

Voltage: 120 or 240 VAC (other voltages available upon request)
Maximum Exposure Temperature: -70°F to 392°F (-57°C to 200°C)
Nominal Thickness:

  • Aluminum Bracket Thickness: 0.090 in (2.3 mm)
  • Aluminum Bracket and Heater Thickness: 0.140 in (3.6 mm)
  • Thickness (with Thermostat and Flange): 1.0 in (25.4 mm)

Mounting Holes: Two 0.156 in x 0.250 in (4 mm x 6 mm) oval shaped mounting holes
Power Leads: 48 in (1219 mm) PFA extruded leads with bare wire (no plug)

*Mounting suggestion: For optimum performance, mount heater vertically at the bottom of the enclosure

Ordering Information

Width Length Total Watts Volts  Thermostat
Opens Closes
TSREH600 2.5” (64mm) 6” (152mm) 60 120VAC No Thermostat
TSREH2600 2.5” (64mm) 6” (152mm) 60 240VAC No Thermostat
TSREH2640 2.5” (64mm) 6” (152mm) 60 240VAC 60°F (15°C) 40°F (4°C)
TSREH640 2.5” (64mm) 6” (152mm) 60 120VAC 60°F (15°C) 40°F (4°C)
TSREH6110 2.5” (64mm) 6” (152mm) 60 120VAC 140°F (60°C) 110°F (43°C)
TSREH6150 2.5” (64mm) 6” (152mm) 60 120VAC 180°F (82°C) 150°F (65°C)
TSREH1200 2.5” (64mm) 12” (305mm) 120 120VAC No Thermostat
TSREH21240 2.5” (64mm) 12” (305mm) 120 240VAC 60°F (15°C) 60°F (15°C)
TSREH1240 2.5” (64mm) 12” (305mm) 120 120VAC 60°F (15°C) 60°F (15°C)
TSREH21200 2.5” (64mm) 12” (305mm) 120 240VAC No Thermostat
TSREH12110 2.5” (64mm) 12” (305mm) 120 120VAC 140°F (60°C) 110°F (43°C)
TSREH12150 2.5” (64mm) 12” (305mm) 120 120VAC 180°F (82°C) 150°F (65°C)

*Dimensions listed are for heater and bracket; actual heater width is 2.0 in  (51 mm)
**Other sizes and thermostat settings are available upon request.

Related Posts

4 Reasons You Should Prep for Winter Now: 2023

Winter can be a challenging season for property and business owners, especially when it comes to protecting their buildings from the cold, snow, and ice. From frozen pipes, gutters, and roofs, the winter months can cause significant damage to your property. Check out these 4 reasons why prepping your space in the warmer months is ideal.

March 23, 2023

Resources

Instruction Manuals
pdf
Silicone Rubber Enclosure Heaters Instructions (10362-05-SREH)
(Size: 350.1 KB)
pdf
TSREH Silicone Rubber Enclosure Heaters Instruction Manual (10362-13)
(Size: 316.4 KB)
Catalog/Specifications Sheet
pdf
Temperature Controllers & Accessories for Heating Blankets Catalog
(Size: 443.3 KB)
pdf
TSREH Enclosure Heaters Catalog
(Size: 394 KB)
Weight N/A
Voltage

120, 240
Blanket Size

2.5in x 6in (64mm x 152mm), 2.5in x 12in (64mm x 305mm)
Temperature Control Range

No Thermostat, 40F to 60F (4C to 15C), 110F to 140F (43C to 60C), 150F to 180F (65C to 82C)
